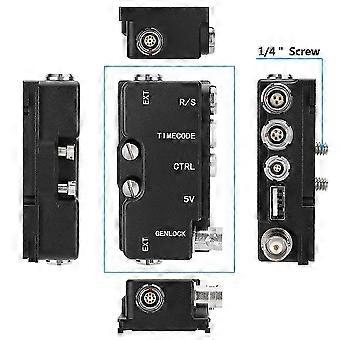

Lanxri B-Box For RED KOMODO EXT9-pin Splitter-R/S (3pin) Time Code (0B 5pin) CTRL (00B 4pin) 5V (USB) Genlock (BNC) Product Features R/S (3pin) Simple runop of the handle trigger box, simple 3-pin trigger cable, etc. No power available Devices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758 pin1:GND, pin2:N/C, pin3:GPI Time code (0B 5pin) Standard wiring of time code input/output pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT CTRL (00B 4pin) RED CTRL standard wiring pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX 5V (USB) 5V available, maximum 500mA May need to enable power in the camera menu Genlock (BNC) Standard wiring for genlock Center: signal, shell: GND EXT input/output, one EXT 0B9 pin output is reserved to ensure that the original cable can continue to be used. Product Description B-Box (RED KOMODO) is connected to the BP-9 battery slot on the right side of the camera and provides a breakout cable for the EXT connector of the camera. Battery Slide Pro V-Mount or Gold Mount for RED KOMODO can be used at the same time. Customized right-angle 360-degree rotating elbow connectors allow neat cable operation. When using the B-Box, the Canon BP-9 battery can also be installed in the slot on the left side of the camera, or fixed on the device with a 1/4" screw. Net Weight: 120.5 g Package Included: 1 B-Box For RED KOMODO EXT9-pin Splitter-R/S (3pin) Time Code (0B 5pin) CTRL (00B 4pin) 5V (USB) Genlock (BNC) Before you place an order, please provide me with English information to facilitate our delivery and logistics
